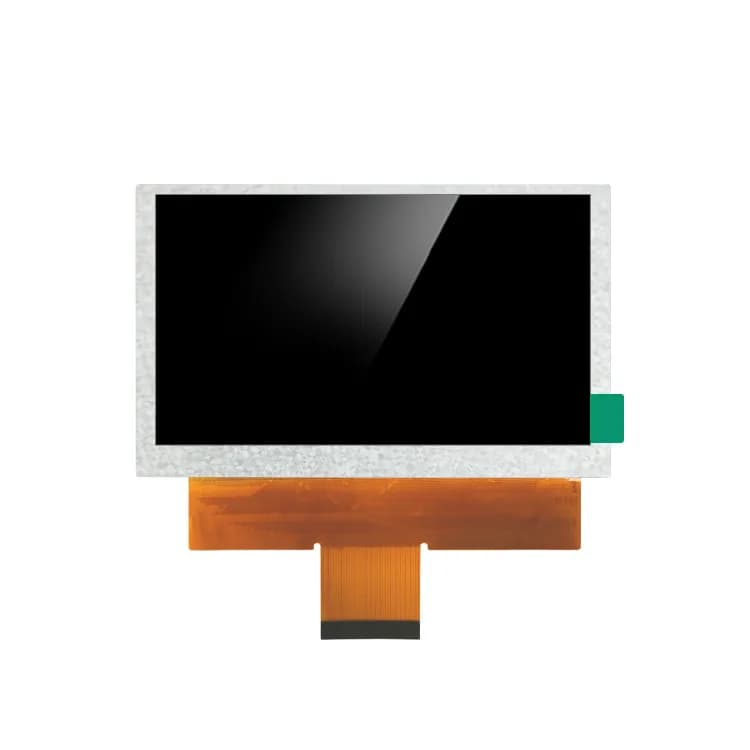

Specifications
| Diagonal size | 5.8" |
|---|---|
| Manufactured by | Shenzhen PengJi Photoelectricity Co., Ltd. (direct factory) |
| Resolution | 1920×1080 |
| Panel type | TN |
| Interface | LVDS |
| Pixel pitch (mm) | 0.0675 * 0.0675 mm |
| Touch | None |
| Brightness | 400 cd/m² (nits) |
| Viewing angle | 12 O’clock viewing direction |
| Colors | 16.7M |
| Outline (mm) | 145.33 (W) * 89.3 (H) * 5.7(T) mm |
| Active area (mm) | 129.6(W) * 72.90(H) mm |
| Backlight | 6series*3 |
Data sources
- Specifications from the product page of the factory that builds the PJ5801G02-57H60P400 (Shenzhen PengJi Photoelectricity Co., Ltd.).
- Brightness is the standard-backlight typical value encoded in the PengJi part number (e.g. …P400 = 400 cd/m²), cross-checked against PengJi's product table and datasheets; other backlight levels can be built.
- Confirm final values against the datasheet supplied with samples.
Integration calculations
Figures below are calculated from the PJ5801G02-57H60P400’s 1920×1080 resolution and LVDS, so you can size the host before requesting samples. Refresh rates are theoretical bus limits; real throughput is lower once command overhead and rendering time are included.
| Pixel density | 380 PPI |
|---|---|
| Native orientation | Landscape (1920×1080) |
| Full frame buffer | 3.96 MB at RGB565 · 5.93 MB at RGB888 |
| LVDS pixel clock for 60 Hz | ≈ 149 MHz → dual-channel LVDS (single channel ≤ ~85 MHz) |
At 400 cd/m² it is sized for indoor use; the backlight can be upgraded for brighter environments.
Hosts with a native LVDS peripheral
Native LVDS output.
- NXP i.MX 8M Plus
Native LVDS display bridge.
Interface support is based on each processor’s published display peripherals, not a bench test of this module. Ask us for tested init code.
Frequently asked questions
What is the brightness of the PJ5801G02-57H60P400?
400 cd/m² typical with the standard backlight. At 400 cd/m² it is sized for indoor use; the backlight can be upgraded for brighter environments.
What interface does the PJ5801G02-57H60P400 use?
LVDS. Pin definition and timing are in the datasheet, which you can request on this page.
Which processors can drive the PJ5801G02-57H60P400?
Rockchip RK3568: Native LVDS output. NXP i.MX 8M Plus: Native LVDS display bridge.
What is the MOQ and lead time for the PJ5801G02-57H60P400?
Samples start from 1 pc. Production MOQ and lead time depend on quantity and any customization (FPC length, backlight, touch), and are agreed per project with our sales team. Send your annual volume and target date for a quote.
