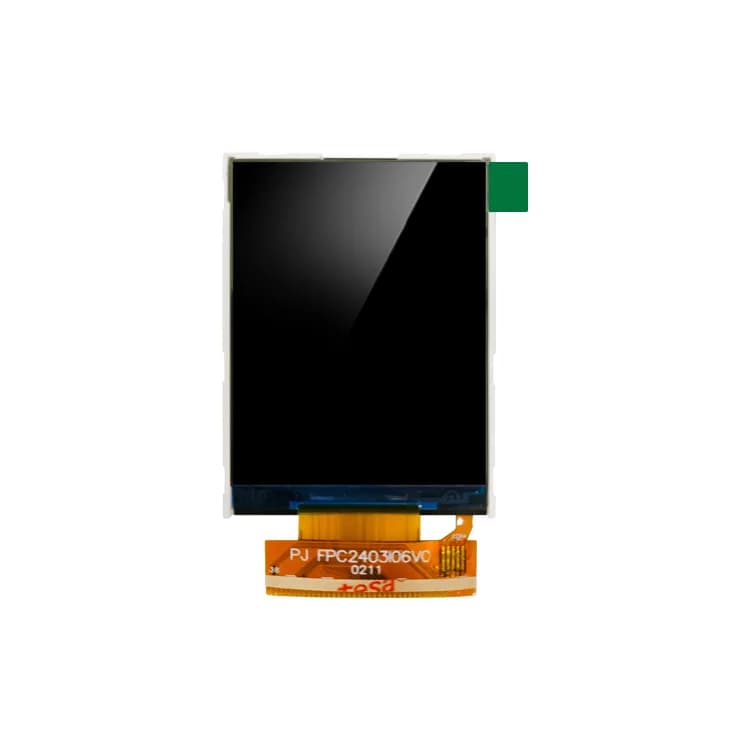

Specifications
| Diagonal size | 2.4" |
|---|---|
| Manufactured by | Shenzhen PengJi Photoelectricity Co., Ltd. (direct factory) |
| Resolution | 240×320 |
| Interface | On request |
| Touch | None |
| Brightness | 300 cd/m² (nits) |
Data sources
- Specifications from the product page of the factory that builds the PJ2403I06-22H36P300 (Shenzhen PengJi Photoelectricity Co., Ltd.).
- PengJi's product page has no spec table for this model; interface, driver IC and outline come with the datasheet. Brightness is the standard-backlight typical value encoded in the PengJi part number (e.g. …P400 = 400 cd/m²), cross-checked against PengJi's product table and datasheets; other backlight levels can be built.
- Confirm final values against the datasheet supplied with samples.
Integration calculations
Figures below are calculated from the PJ2403I06-22H36P300’s 240×320 resolution and interface, so you can size the host before requesting samples. Refresh rates are theoretical bus limits; real throughput is lower once command overhead and rendering time are included.
| Pixel density | 167 PPI |
|---|---|
| Native orientation | Portrait (240×320); rotate in the driver for landscape UIs |
| Full frame buffer | 150 KB at RGB565 · 225 KB at RGB888 |
At 300 cd/m² it is sized for indoor use; the backlight can be upgraded for brighter environments.
Alternatives in the catalog
Other 2.4" options
- PJ2301H10-23H37P4502.3" 320×240 · MCU (8080 parallel) · TN · 450 nits
- PJ2301T03-23H40P4002.3" 320×240 · RGB (parallel) · TN · 400 nits
- PJ2301H09-23H40P3502.3" 320×240 · RGB (parallel) · TN · 350 nits
- PJ2403I02-22H10P3002.4" 240×320 · SPI · TN · 300 nits
- PJ2401I02-22H38P3002.4" 240×320 · MCU (8080 parallel) · TN · 300 nits
- PJ2401I24-22H30P2502.4" 240×320 · SPI · TN · 250 nits
240×320 in other sizes
- PJ3202H01-36H45P300R3.2" 240×320 · SPI / MCU (8080 parallel) / RGB (parallel) · TN · 300 nits
- PJ2805H05-30H45P3002.8" 240×320 · MCU (8080 parallel) · TN · 300 nits
- PJ2805H03-30H45P3002.8" 240×320 · MCU (8080 parallel) · TN · 300 nits
- PJ2801H22-23H10P2002.8" 240×320 · SPI · TN · 200 nits
- PJ2801H05-23H30P2502.8" 240×320 · SPI · TN · 250 nits
- PJ2802V03-26H37P2602.8" 240×320 · interface on request · 260 nits
Frequently asked questions
What is the brightness of the PJ2403I06-22H36P300?
300 cd/m² typical with the standard backlight. At 300 cd/m² it is sized for indoor use; the backlight can be upgraded for brighter environments.
What is the MOQ and lead time for the PJ2403I06-22H36P300?
Samples start from 1 pc. Production MOQ and lead time depend on quantity and any customization (FPC length, backlight, touch), and are agreed per project with our sales team. Send your annual volume and target date for a quote.
