Specifications
| Diagonal size | 2.3" |
|---|---|
| Manufactured by | Shenzhen PengJi Photoelectricity Co., Ltd. (direct factory) |
| Resolution | 320×240 |
| Panel type | TN |
| Interface | RGB (parallel) |
| Driver IC | ILI9342C |
| Pixel pitch (mm) | 0.153*0.153 mm |
| Touch | None |
| Brightness | 400 cd/m² (nits) |
| Viewing angle | 6 O'clock viewing direction |
| Colors | 65K |
| Outline (mm) | 50.90(W)*45.80(H)*2.40(T) mm |
| Active area (mm) | 46.75(W)*35.06(H) mm |
| Backlight | 4 LED Parallel |
Data sources
- Specifications from the product page of the factory that builds the PJ2301T03-23H40P400 (Shenzhen PengJi Photoelectricity Co., Ltd.).

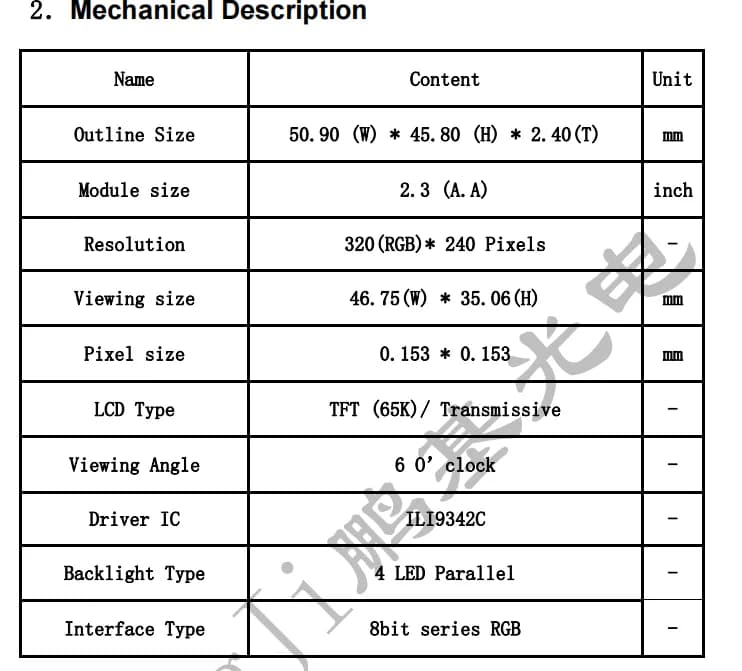

- Specs transcribed from the spec-chart image on the source page; verify against the datasheet. Brightness is the standard-backlight typical value encoded in the PengJi part number (e.g. …P400 = 400 cd/m²), cross-checked against PengJi's product table and datasheets; other backlight levels can be built.
- Confirm final values against the datasheet supplied with samples.
Integration
Integration calculations
Figures below are calculated from the PJ2301T03-23H40P400’s 320×240 resolution and RGB (parallel), so you can size the host before requesting samples. Refresh rates are theoretical bus limits; real throughput is lower once command overhead and rendering time are included.
| Pixel density | 174 PPI |
|---|---|
| Native orientation | Landscape (320×240) |
| Full frame buffer | 150 KB at RGB565 · 225 KB at RGB888 |
| RGB pixel clock for 60 Hz | ≈ 5.5 MHz (incl. ~20% blanking) |
| RGB bus width | 16 data lines (65K colors) + PCLK, HSYNC, VSYNC, DE |
At 400 cd/m² it is sized for indoor use; the backlight can be upgraded for brighter environments.
Hosts with a native RGB (parallel) peripheral
RGB LCD peripheral (16-bit RGB565) with the 150 KB frame buffer in PSRAM.
- STM32 with LTDC
F429/F7/H7 families drive 16- to 24-bit RGB panels from external SDRAM.
- Raspberry Pi (DPI)
Parallel RGB over the GPIO header via the DPI overlay.
Interface support is based on each processor’s published display peripherals, not a bench test of this module. Ask us for tested init code.
Alternatives in the catalog
Other 2.3" options
- PJ2301H10-23H37P4502.3" 320×240 · MCU (8080 parallel) · TN · 450 nits
- PJ2301H09-23H40P3502.3" 320×240 · RGB (parallel) · TN · 350 nits
- PJ2403I06-22H36P3002.4" 240×320 · interface on request · 300 nits
- PJ2403I02-22H10P3002.4" 240×320 · SPI · TN · 300 nits
- PJ2401I02-22H38P3002.4" 240×320 · MCU (8080 parallel) · TN · 300 nits
- PJ2401I24-22H30P2502.4" 240×320 · SPI · TN · 250 nits
320×240 in other sizes
- PJT350P15H50-400P54C3.5" 320×240 · RGB (parallel) · TN · 400 nits
- PJ3502B01-32H54P4003.5" 320×240 · RGB (parallel) · IPS · 400 nits
- PJ3501I01-34H54P3003.5" 320×240 · RGB (parallel) · IPS · 300 nits
- PJ2501G01-25H51P3002.6" 320×240 · RGB (parallel) · TN · 300 nits
- PJ2002G11-30H40P2002" 320×240 · RGB (parallel) · TN · 200 nits
- PJ2002C25-37H40P200R2" 320×240 · interface on request · TRANSFLECTIVE · 200 nits
Frequently asked questions
What is the brightness of the PJ2301T03-23H40P400?
400 cd/m² typical with the standard backlight. At 400 cd/m² it is sized for indoor use; the backlight can be upgraded for brighter environments.
What interface does the PJ2301T03-23H40P400 use?
RGB. The driver IC is the ILI9342C. Pin definition and timing are in the datasheet, which you can request on this page.
Which processors can drive the PJ2301T03-23H40P400?
ESP32-S3: RGB LCD peripheral (16-bit RGB565) with the 150 KB frame buffer in PSRAM. STM32 with LTDC: F429/F7/H7 families drive 16- to 24-bit RGB panels from external SDRAM. Raspberry Pi (DPI): Parallel RGB over the GPIO header via the DPI overlay.
What is the MOQ and lead time for the PJ2301T03-23H40P400?
Samples start from 1 pc. Production MOQ and lead time depend on quantity and any customization (FPC length, backlight, touch), and are agreed per project with our sales team. Send your annual volume and target date for a quote.
