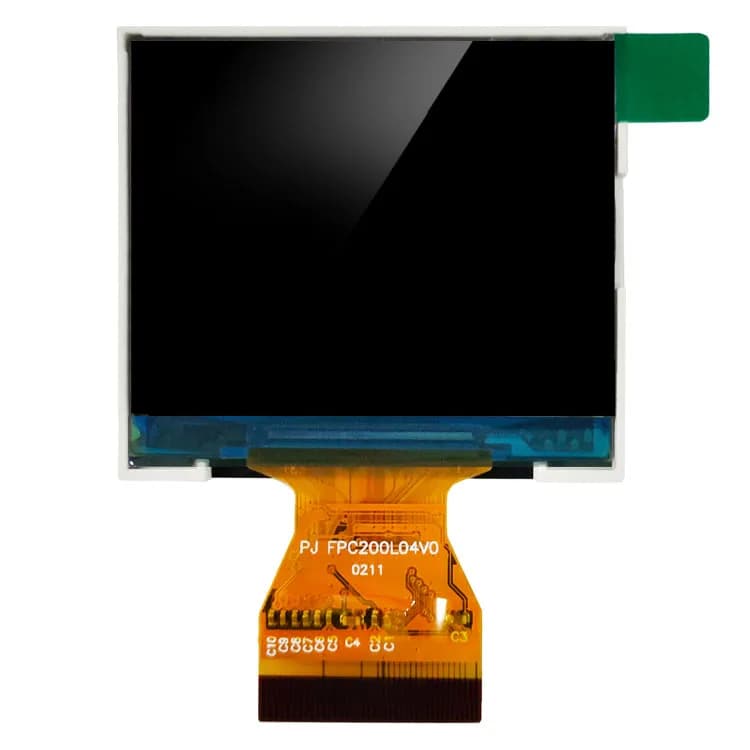

Specifications
| Diagonal size | 2" |
|---|---|
| Manufactured by | Shenzhen PengJi Photoelectricity Co., Ltd. (direct factory) |
| Resolution | 320×240 |
| Panel type | TRANSFLECTIVE |
| Interface | On request |
| Driver IC | ILI9342C |
| Touch | None |
| Brightness | 200 cd/m² (nits) |
| Viewing angle | WIDE VIEWING viewing direction |
| Colors | 262K |
| Operating temp. | -10 to +60 °C |
| Outline (mm) | 46.10 (W)X40.96(H)X2.53(MAX) mm |
| Active area (mm) | 40.80(W)X34.20 (H) mm |
Data sources
- Specifications from the product page of the factory that builds the PJ2002C25-37H40P200R (Shenzhen PengJi Photoelectricity Co., Ltd.).
- Brightness is the standard-backlight typical value encoded in the PengJi part number (e.g. …P400 = 400 cd/m²), cross-checked against PengJi's product table and datasheets; other backlight levels can be built.
- Confirm final values against the datasheet supplied with samples.
Integration
Integration calculations
Figures below are calculated from the PJ2002C25-37H40P200R’s 320×240 resolution and interface, so you can size the host before requesting samples. Refresh rates are theoretical bus limits; real throughput is lower once command overhead and rendering time are included.
| Pixel density | 200 PPI |
|---|---|
| Native orientation | Landscape (320×240) |
| Full frame buffer | 150 KB at RGB565 · 225 KB at RGB888 |
At 200 cd/m² it is sized for indoor use; the backlight can be upgraded for brighter environments.
Alternatives in the catalog
Other 2" options
- PJ2003L02-22H22P3002" 240×320 · SPI / MCU (8080 parallel) · TN · 300 nits
- PJ2101B02-22H40P2502.1" 480×480 · interface on request · IPS · 250 nits
- PJ2002G11-30H40P2002" 320×240 · RGB (parallel) · TN · 200 nits
- PJ2001H05-25H14P2002" 176×220 · SPI · TN · 200 nits
- PJ2002G10-25H40P2002" 320×240 · RGB (parallel) · TN · 200 nits
- PJ2007I01-24H10P1502" 176×220 · SPI · TN · 150 nits
320×240 in other sizes
- PJT350P15H50-400P54C3.5" 320×240 · RGB (parallel) · TN · 400 nits
- PJ3502B01-32H54P4003.5" 320×240 · RGB (parallel) · IPS · 400 nits
- PJ3501I01-34H54P3003.5" 320×240 · RGB (parallel) · IPS · 300 nits
- PJ2501G01-25H51P3002.6" 320×240 · RGB (parallel) · TN · 300 nits
- PJ2301H10-23H37P4502.3" 320×240 · MCU (8080 parallel) · TN · 450 nits
- PJ2301T03-23H40P4002.3" 320×240 · RGB (parallel) · TN · 400 nits
Frequently asked questions
What is the brightness of the PJ2002C25-37H40P200R?
200 cd/m² typical with the standard backlight. At 200 cd/m² it is sized for indoor use; the backlight can be upgraded for brighter environments.
What is the MOQ and lead time for the PJ2002C25-37H40P200R?
Samples start from 1 pc. Production MOQ and lead time depend on quantity and any customization (FPC length, backlight, touch), and are agreed per project with our sales team. Send your annual volume and target date for a quote.
