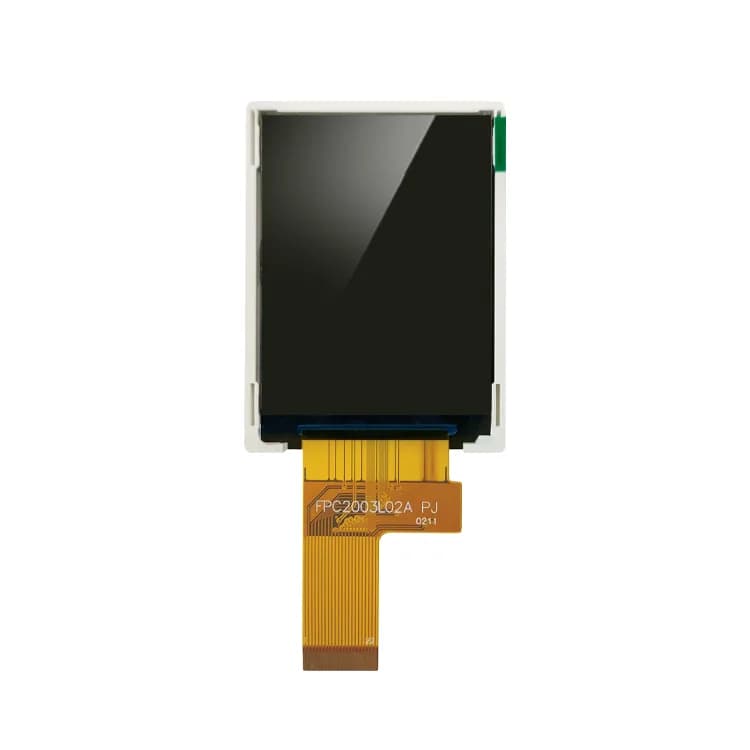

Specifications
| Diagonal size | 2" |
|---|---|
| Manufactured by | Shenzhen PengJi Photoelectricity Co., Ltd. (direct factory) |
| Resolution | 240×320 |
| Panel type | TN |
| Interface | SPI / MCU (8080 parallel) |
| Driver IC | ST7789V |
| Pixel pitch (mm) | 0.127 * 0.127 mm |
| Touch | None |
| Brightness | 300 cd/m² (nits) |
| Viewing angle | 12 O’clock viewing direction |
| Colors | 65K |
| Outline (mm) | 38.35 (W) * 51.7 (H) * 14.66(T) mm |
| Active area (mm) | 30.6(W) * 40.32(H) mm |
| Backlight | 3 LED Parallel |
| FPC / connector | 22-pin |
Data sources
- Specifications from the product page of the factory that builds the PJ2003L02-22H22P300 (Shenzhen PengJi Photoelectricity Co., Ltd.).
- Brightness is the standard-backlight typical value encoded in the PengJi part number (e.g. …P400 = 400 cd/m²), cross-checked against PengJi's product table and datasheets; other backlight levels can be built.
- Confirm final values against the datasheet supplied with samples.
Integration
Integration calculations
Figures below are calculated from the PJ2003L02-22H22P300’s 240×320 resolution and SPI / MCU (8080 parallel), so you can size the host before requesting samples. Refresh rates are theoretical bus limits; real throughput is lower once command overhead and rendering time are included.
| Pixel density | 200 PPI |
|---|---|
| Native orientation | Portrait (240×320); rotate in the driver for landscape UIs |
| Full frame buffer | 150 KB at RGB565 · 225 KB at RGB888 |
| SPI full-frame refresh (RGB565, theoretical) | 33 fps at 40 MHz · 65 fps at 80 MHz |
| 8080 parallel refresh (theoretical, 10 MHz WR) | 100+ fps on a 16-bit bus · 65 fps on an 8-bit bus |
At 300 cd/m² it is sized for indoor use; the backlight can be upgraded for brighter environments.
Hosts with a native SPI / MCU (8080 parallel) peripheral
SPI up to 80 MHz; the 150 KB RGB565 frame fits in internal SRAM.
- STM32, RP2040, nRF52
Any MCU with an SPI peripheral and DMA; partial-buffer rendering keeps RAM use low.
LCD_CAM peripheral drives 8/16-bit 8080 (i80) panels with DMA.
- STM32 with FSMC/FMC
The external memory controller maps the panel as memory for fast writes.
Interface support is based on each processor’s published display peripherals, not a bench test of this module. Ask us for tested init code.
Alternatives in the catalog
Other 2" options
- PJ2101B02-22H40P2502.1" 480×480 · interface on request · IPS · 250 nits
- PJ2002G11-30H40P2002" 320×240 · RGB (parallel) · TN · 200 nits
- PJ2001H05-25H14P2002" 176×220 · SPI · TN · 200 nits
- PJ2002C25-37H40P200R2" 320×240 · interface on request · TRANSFLECTIVE · 200 nits
- PJ2002G10-25H40P2002" 320×240 · RGB (parallel) · TN · 200 nits
- PJ2007I01-24H10P1502" 176×220 · SPI · TN · 150 nits
240×320 in other sizes
- PJ3202H01-36H45P300R3.2" 240×320 · SPI / MCU (8080 parallel) / RGB (parallel) · TN · 300 nits
- PJ2805H05-30H45P3002.8" 240×320 · MCU (8080 parallel) · TN · 300 nits
- PJ2805H03-30H45P3002.8" 240×320 · MCU (8080 parallel) · TN · 300 nits
- PJ2801H22-23H10P2002.8" 240×320 · SPI · TN · 200 nits
- PJ2801H05-23H30P2502.8" 240×320 · SPI · TN · 250 nits
- PJ2802V03-26H37P2602.8" 240×320 · interface on request · 260 nits
Frequently asked questions
What is the brightness of the PJ2003L02-22H22P300?
300 cd/m² typical with the standard backlight. At 300 cd/m² it is sized for indoor use; the backlight can be upgraded for brighter environments.
What interface does the PJ2003L02-22H22P300 use?
SPI / MCU through a 22-pin FPC. The driver IC is the ST7789V. Pin definition and timing are in the datasheet, which you can request on this page.
Which processors can drive the PJ2003L02-22H22P300?
ESP32 / ESP32-S3: SPI up to 80 MHz; the 150 KB RGB565 frame fits in internal SRAM. STM32, RP2040, nRF52: Any MCU with an SPI peripheral and DMA; partial-buffer rendering keeps RAM use low. ESP32-S3: LCD_CAM peripheral drives 8/16-bit 8080 (i80) panels with DMA. STM32 with FSMC/FMC: The external memory controller maps the panel as memory for fast writes.
What is the MOQ and lead time for the PJ2003L02-22H22P300?
Samples start from 1 pc. Production MOQ and lead time depend on quantity and any customization (FPC length, backlight, touch), and are agreed per project with our sales team. Send your annual volume and target date for a quote.
