Specifications
| Diagonal size | 4.3" |
|---|---|
| Manufactured by | Shenzhen PengJi Photoelectricity Co., Ltd. (direct factory) |
| Resolution | 480×272 |
| Panel type | TN |
| Interface | RGB (parallel) |
| Pixel pitch (mm) | 0.198*0.198 mm |
| Touch | Resistive (RTP) |
| Brightness | 500 cd/m² (nits) |
| Viewing angle | 12 O'clock viewing direction |
| Colors | 16.7M |
| Outline (mm) | 105.50(W)*67.20(H)*4.10(T) mm |
| Active area (mm) | 95.04(W)*53.86(H) mm |
| Backlight | 5 serial × 2 LEDs |
Data sources
- Specifications from the product page of the factory that builds the PJ4301I55-41H40P500R (Shenzhen PengJi Photoelectricity Co., Ltd.).

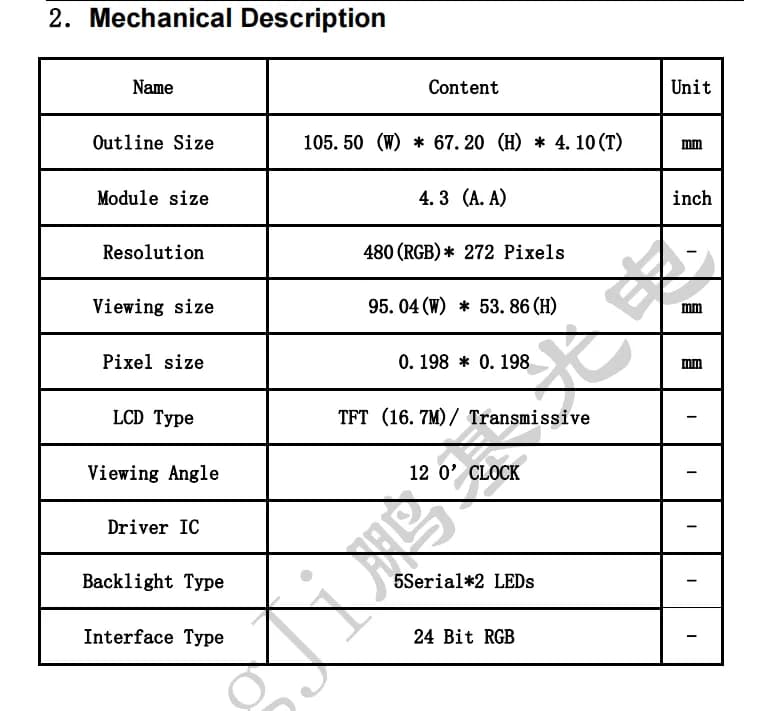

- Specs transcribed from the spec-chart image on the source page; verify against the datasheet. Brightness is the standard-backlight typical value encoded in the PengJi part number (e.g. …P400 = 400 cd/m²), cross-checked against PengJi's product table and datasheets; other backlight levels can be built. Touch panel type from the part-number suffix (R = resistive, C = capacitive) and the thicker module outline; confirm the touch controller with the datasheet.
- Confirm final values against the datasheet supplied with samples.
Integration calculations
Figures below are calculated from the PJ4301I55-41H40P500R’s 480×272 resolution and RGB (parallel), so you can size the host before requesting samples. Refresh rates are theoretical bus limits; real throughput is lower once command overhead and rendering time are included.
| Pixel density | 128 PPI |
|---|---|
| Native orientation | Landscape (480×272) |
| Full frame buffer | 255 KB at RGB565 · 383 KB at RGB888 |
| RGB pixel clock for 60 Hz | ≈ 9.4 MHz (incl. ~20% blanking) |
| RGB bus width | 24 data lines (16.7M colors) + PCLK, HSYNC, VSYNC, DE; can be wired as 16-bit RGB565 with the low bits tied |
At 500 cd/m² it suits bright indoor spaces and shaded outdoor kiosks; choose 800+ cd/m² with optical bonding for direct sunlight.
Hosts with a native RGB (parallel) peripheral
RGB LCD peripheral (16-bit RGB565) with the 255 KB frame buffer in PSRAM.
- STM32 with LTDC
F429/F7/H7 families drive 16- to 24-bit RGB panels from external SDRAM.
- Raspberry Pi (DPI)
Parallel RGB over the GPIO header via the DPI overlay.
Interface support is based on each processor’s published display peripherals, not a bench test of this module. Ask us for tested init code.
Alternatives in the catalog
Other 4.3" options
- PJ4301I07-29H40P10504.3" 480×272 · RGB (parallel) · TN · 1050 nits
- PJ4303H03-25H40P10004.3" 800×480 · RGB (parallel) · IPS · 1000 nits
- PJ4303H02-25H40P7004.3" 800×480 · RGB (parallel) · IPS · 700 nits
- PJ4301H03-41H40P600R4.3" 480×272 · RGB (parallel) · IPS · 600 nits
- PJ4303H04-29H40P5004.3" 800×480 · RGB (parallel) · IPS · 500 nits
- PJ4301H06-45H40P500C4.3" 480×272 · RGB (parallel) · IPS · 500 nits
Frequently asked questions
What is the brightness of the PJ4301I55-41H40P500R?
500 cd/m² typical with the standard backlight. At 500 cd/m² it suits bright indoor spaces and shaded outdoor kiosks; choose 800+ cd/m² with optical bonding for direct sunlight.
What interface does the PJ4301I55-41H40P500R use?
RGB. Pin definition and timing are in the datasheet, which you can request on this page.
Which processors can drive the PJ4301I55-41H40P500R?
ESP32-S3: RGB LCD peripheral (16-bit RGB565) with the 255 KB frame buffer in PSRAM. STM32 with LTDC: F429/F7/H7 families drive 16- to 24-bit RGB panels from external SDRAM. Raspberry Pi (DPI): Parallel RGB over the GPIO header via the DPI overlay.
Does the PJ4301I55-41H40P500R have a touch panel?
Yes, a resistive (RTP) touch panel. The non-touch version and other cover-glass options can be built.
What is the MOQ and lead time for the PJ4301I55-41H40P500R?
Samples start from 1 pc. Production MOQ and lead time depend on quantity and any customization (FPC length, backlight, touch), and are agreed per project with our sales team. Send your annual volume and target date for a quote.
