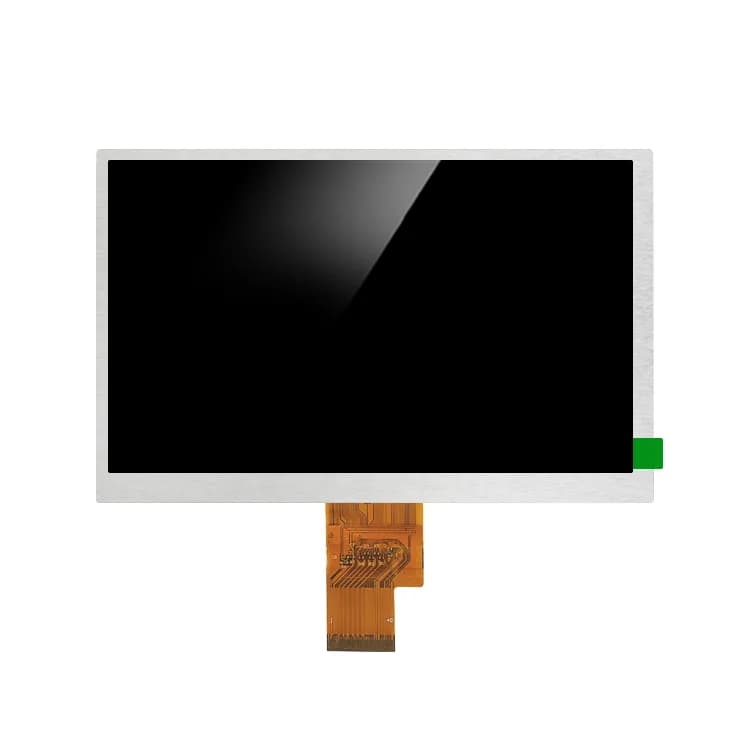

Specifications
| Diagonal size | 7" |
|---|---|
| Manufactured by | Shenzhen PengJi Photoelectricity Co., Ltd. (direct factory) |
| Resolution | 800×480 |
| Panel type | IPS |
| Interface | RGB (parallel) |
| Pixel pitch (mm) | 0.179 * 0.179 mm |
| Touch | None |
| Brightness | 1000 cd/m² (nits) |
| Viewing angle | Full viewing angle (all directions) |
| Colors | 16.7M |
| Outline (mm) | 164.90 (W) * 100.00 (H) * 5.70(T) mm |
| Active area (mm) | 154.08(W) * 85.92(H) mm |
| Backlight | 3 Serial 12 Parallel LEDs |
Data sources
- Specifications from the product page of the factory that builds the PJ7004I38-57H40P1000 (Shenzhen PengJi Photoelectricity Co., Ltd.).
- Brightness is the standard-backlight typical value encoded in the PengJi part number (e.g. …P400 = 400 cd/m²), cross-checked against PengJi's product table and datasheets; other backlight levels can be built.
- Confirm final values against the datasheet supplied with samples.
Integration calculations
Figures below are calculated from the PJ7004I38-57H40P1000’s 800×480 resolution and RGB (parallel), so you can size the host before requesting samples. Refresh rates are theoretical bus limits; real throughput is lower once command overhead and rendering time are included.
| Pixel density | 133 PPI |
|---|---|
| Native orientation | Landscape (800×480) |
| Full frame buffer | 750 KB at RGB565 · 1.10 MB at RGB888 |
| RGB pixel clock for 60 Hz | ≈ 27.6 MHz (incl. ~20% blanking) |
| RGB bus width | 24 data lines (16.7M colors) + PCLK, HSYNC, VSYNC, DE; can be wired as 16-bit RGB565 with the low bits tied |
At 1000 cd/m² this is a high-brightness module suitable for semi-outdoor and, with optical bonding and AR glass, direct-sunlight use. See sunlight-readable displays.
Hosts with a native RGB (parallel) peripheral
RGB LCD peripheral (16-bit RGB565) with the 750 KB frame buffer in PSRAM.
- STM32 with LTDC
F429/F7/H7 families drive 16- to 24-bit RGB panels from external SDRAM.
- Raspberry Pi (DPI)
Parallel RGB over the GPIO header via the DPI overlay.
Interface support is based on each processor’s published display peripherals, not a bench test of this module. Ask us for tested init code.
Alternatives in the catalog
Other 7" options
- PJ7004I58-57H50P6007" 800×480 · RGB (parallel) · TN · 600 nits
- PJ7003I78-60H40P400C7" 800×480 · RGB (parallel) · TN · 400 nits
- PJ7003I40-35H40P4007" 800×480 · RGB (parallel) · TN · 400 nits
- PJT700P94H57-400P50N7" 800×480 · RGB (parallel) · TN · 400 nits
- PJ7003I04-35H50P3507" 800×480 · RGB (parallel) · TN · 350 nits
- PJ7005I07-28H40P3007" 1024×600 · LVDS · TN · 300 nits
800×480 in other sizes
- PJ9002I04-55H50P3509" 800×480 · RGB (parallel) · TN · 350 nits
- PJ5004I06-28H40P3505" 800×480 · RGB (parallel) · TN · 350 nits
- PJ5005I04-29H40P2505" 800×480 · RGB (parallel) · TN · 250 nits
- PJ5004I03-28H40P5005" 800×480 · RGB (parallel) · TN · 500 nits
- PJ5005I02-40H40P300R5" 800×480 · RGB (parallel) · TN · 300 nits
- PJ5005I02-28H40P4005" 800×480 · RGB (parallel) · TN · 400 nits
Frequently asked questions
What is the brightness of the PJ7004I38-57H40P1000?
1000 cd/m² typical with the standard backlight. At 1000 cd/m² this is a high-brightness module suitable for semi-outdoor and, with optical bonding and AR glass, direct-sunlight use.
What interface does the PJ7004I38-57H40P1000 use?
RGB. Pin definition and timing are in the datasheet, which you can request on this page.
Which processors can drive the PJ7004I38-57H40P1000?
ESP32-S3: RGB LCD peripheral (16-bit RGB565) with the 750 KB frame buffer in PSRAM. STM32 with LTDC: F429/F7/H7 families drive 16- to 24-bit RGB panels from external SDRAM. Raspberry Pi (DPI): Parallel RGB over the GPIO header via the DPI overlay.
What is the MOQ and lead time for the PJ7004I38-57H40P1000?
Samples start from 1 pc. Production MOQ and lead time depend on quantity and any customization (FPC length, backlight, touch), and are agreed per project with our sales team. Send your annual volume and target date for a quote.
