Specifications
| Diagonal size | 1.28" |
|---|---|
| Manufactured by | Shenzhen PengJi Photoelectricity Co., Ltd. (direct factory) |
| Resolution | 240×240 |
| Panel type | IPS |
| Interface | SPI |
| Pixel pitch (mm) | 0.135*0.135 mm |
| Touch | None |
| Brightness | 200 cd/m² (nits) |
| Viewing angle | Full viewing angle (all directions) |
| Colors | 65K |
| Outline (mm) | 35.6(W)*38.1(H)*1.56(T) mm |
| Active area (mm) | Ø32.4 mm |
| Backlight | 2 LED |
Data sources
- Specifications from the product page of the factory that builds the PJ01301H03-16H12P200 (Shenzhen PengJi Photoelectricity Co., Ltd.).

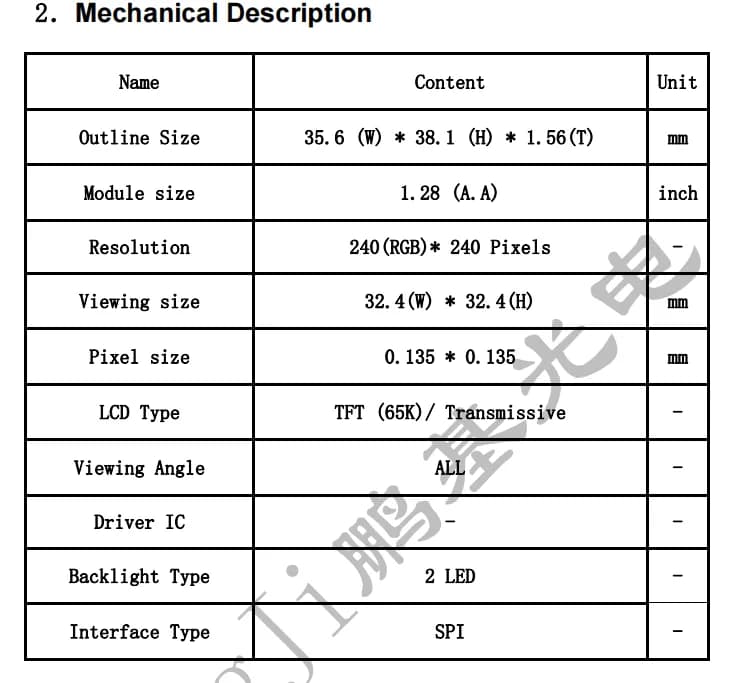

- Specs transcribed from the spec-chart image on the source page; verify against the datasheet. Brightness is the standard-backlight typical value encoded in the PengJi part number (e.g. …P400 = 400 cd/m²), cross-checked against PengJi's product table and datasheets; other backlight levels can be built.
- Confirm final values against the datasheet supplied with samples.
Integration calculations
Figures below are calculated from the PJ01301H03-16H12P200’s 240×240 resolution and SPI, so you can size the host before requesting samples. Refresh rates are theoretical bus limits; real throughput is lower once command overhead and rendering time are included.
| Pixel density | 188 PPI |
|---|---|
| Native orientation | Square (1:1) |
| Full frame buffer | 113 KB at RGB565 · 169 KB at RGB888 |
| SPI full-frame refresh (RGB565, theoretical) | 43 fps at 40 MHz · 87 fps at 80 MHz |
At 200 cd/m² it is sized for indoor use; the backlight can be upgraded for brighter environments.
Hosts with a native SPI peripheral
SPI up to 80 MHz; the 113 KB RGB565 frame fits in internal SRAM.
- STM32, RP2040, nRF52
Any MCU with an SPI peripheral and DMA; partial-buffer rendering keeps RAM use low.
Interface support is based on each processor’s published display peripherals, not a bench test of this module. Ask us for tested init code.
