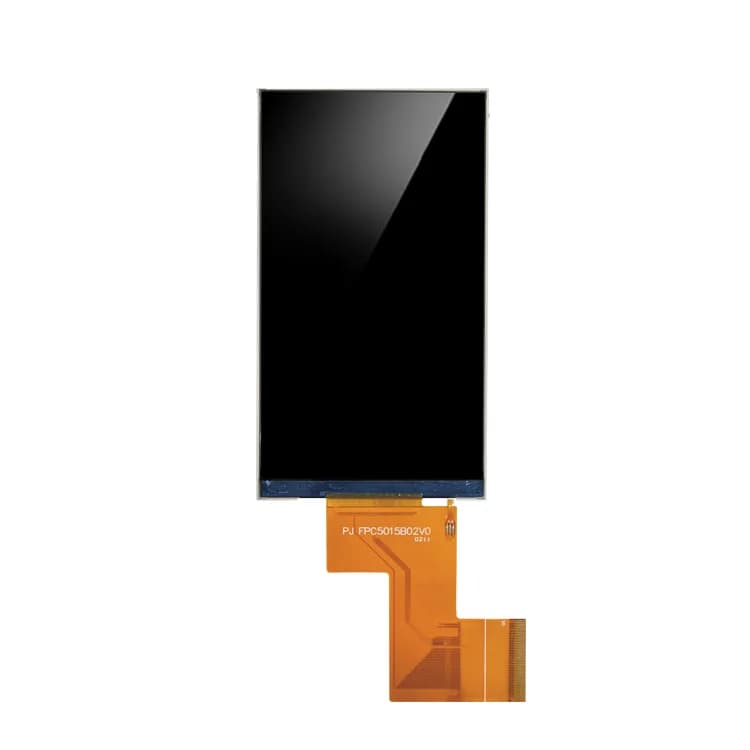

Specifications
| Diagonal size | 4.95" |
|---|---|
| Manufactured by | Shenzhen PengJi Photoelectricity Co., Ltd. (direct factory) |
| Resolution | 480×854 |
| Panel type | IPS |
| Interface | RGB (parallel) |
| Driver IC | ST7701S |
| Pixel pitch (mm) | 0.128 * 0.128 mm |
| Touch | None |
| Brightness | 600 cd/m² (nits) |
| Viewing angle | Full viewing angle (all directions) |
| Colors | 16.7M |
| Outline (mm) | 66.2 (W) * 119.52 (H) * 2.15(T) mm |
| Active area (mm) | 61.56(W) * 109.53(H) mm |
| Backlight | 6 Serial 2 Parallel |
| FPC / connector | 35-pin |
Data sources
- Specifications from the product page of the factory that builds the PJ5015B04-21H50P600 (Shenzhen PengJi Photoelectricity Co., Ltd.).
- Brightness is the standard-backlight typical value encoded in the PengJi part number (e.g. …P400 = 400 cd/m²), cross-checked against PengJi's product table and datasheets; other backlight levels can be built.
- Confirm final values against the datasheet supplied with samples.
Integration
Integration calculations
Figures below are calculated from the PJ5015B04-21H50P600’s 480×854 resolution and RGB (parallel), so you can size the host before requesting samples. Refresh rates are theoretical bus limits; real throughput is lower once command overhead and rendering time are included.
| Pixel density | 198 PPI |
|---|---|
| Native orientation | Portrait (480×854); rotate in the driver for landscape UIs |
| Full frame buffer | 801 KB at RGB565 · 1.17 MB at RGB888 |
| RGB pixel clock for 60 Hz | ≈ 29.5 MHz (incl. ~20% blanking) |
| RGB bus width | 24 data lines (16.7M colors) + PCLK, HSYNC, VSYNC, DE; can be wired as 16-bit RGB565 with the low bits tied |
At 600 cd/m² it suits bright indoor spaces and shaded outdoor kiosks; choose 800+ cd/m² with optical bonding for direct sunlight.
Hosts with a native RGB (parallel) peripheral
RGB LCD peripheral (16-bit RGB565) with the 801 KB frame buffer in PSRAM.
- STM32 with LTDC
F429/F7/H7 families drive 16- to 24-bit RGB panels from external SDRAM.
- Raspberry Pi (DPI)
Parallel RGB over the GPIO header via the DPI overlay.
Interface support is based on each processor’s published display peripherals, not a bench test of this module. Ask us for tested init code.
Alternatives in the catalog
Other 4.95" options
- PJ5004I03-28H40P5005" 800×480 · RGB (parallel) · TN · 500 nits
- PJ5004I05-28H40P4505" 800×480 · RGB (parallel) · TN · 450 nits
- PJ5003I14-28H40P4005" 480×272 · RGB (parallel) · TN · 400 nits
- PJ5005I02-28H40P4005" 800×480 · RGB (parallel) · TN · 400 nits
- PJ5003I09-40H40P400R5" 480×272 · RGB (parallel) · TN · 400 nits
- PJ5004I06-28H40P3505" 800×480 · RGB (parallel) · TN · 350 nits
Frequently asked questions
What is the brightness of the PJ5015B04-21H50P600?
600 cd/m² typical with the standard backlight. At 600 cd/m² it suits bright indoor spaces and shaded outdoor kiosks; choose 800+ cd/m² with optical bonding for direct sunlight.
What interface does the PJ5015B04-21H50P600 use?
RGB through a 35-pin FPC. The driver IC is the ST7701S. Pin definition and timing are in the datasheet, which you can request on this page.
Which processors can drive the PJ5015B04-21H50P600?
ESP32-S3: RGB LCD peripheral (16-bit RGB565) with the 801 KB frame buffer in PSRAM. STM32 with LTDC: F429/F7/H7 families drive 16- to 24-bit RGB panels from external SDRAM. Raspberry Pi (DPI): Parallel RGB over the GPIO header via the DPI overlay.
What is the MOQ and lead time for the PJ5015B04-21H50P600?
Samples start from 1 pc. Production MOQ and lead time depend on quantity and any customization (FPC length, backlight, touch), and are agreed per project with our sales team. Send your annual volume and target date for a quote.
