Specifications
| Diagonal size | 1.77" |
|---|---|
| Manufactured by | Shenzhen PengJi Photoelectricity Co., Ltd. (direct factory) |
| Resolution | 128×160 |
| Panel type | TN |
| Interface | SPI |
| Driver IC | ILI9163V |
| Pixel pitch (mm) | 0.219*0.219 mm |
| Touch | None |
| Brightness | 200 cd/m² (nits) |
| Viewing angle | 12 O'clock viewing direction |
| Colors | 65K |
| Outline (mm) | 34.00(W)*45.83(H)*2.6(T) mm |
| Active area (mm) | 28.03(W)*35.04(H) mm |
| Backlight | 2 LED Parallel |
Data sources
- Specifications from the product page of the factory that builds the PJT177P07H25-200P11N (Shenzhen PengJi Photoelectricity Co., Ltd.).

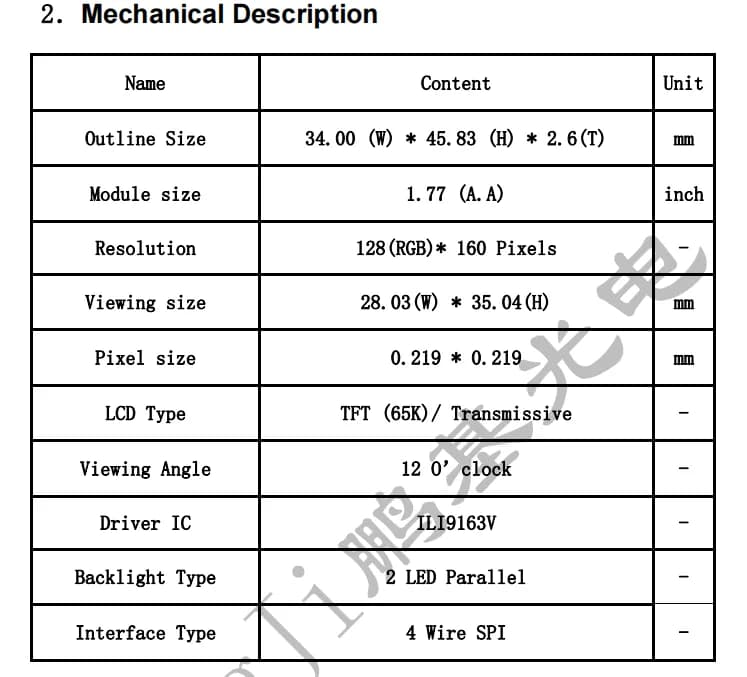

- Specs transcribed from the spec-chart image on the source page; verify against the datasheet. Brightness is the standard-backlight typical value encoded in the PengJi part number (e.g. …P400 = 400 cd/m²), cross-checked against PengJi's product table and datasheets; other backlight levels can be built.
- Confirm final values against the datasheet supplied with samples.
Integration calculations
Figures below are calculated from the PJT177P07H25-200P11N’s 128×160 resolution and SPI, so you can size the host before requesting samples. Refresh rates are theoretical bus limits; real throughput is lower once command overhead and rendering time are included.
| Pixel density | 116 PPI |
|---|---|
| Native orientation | Portrait (128×160); rotate in the driver for landscape UIs |
| Full frame buffer | 40 KB at RGB565 · 60 KB at RGB888 |
| SPI full-frame refresh (RGB565, theoretical) | 100+ fps at 40 MHz · 100+ fps at 80 MHz |
At 200 cd/m² it is sized for indoor use; the backlight can be upgraded for brighter environments.
Hosts with a native SPI peripheral
SPI up to 80 MHz; the 40 KB RGB565 frame fits in internal SRAM.
- STM32, RP2040, nRF52
Any MCU with an SPI peripheral and DMA; partial-buffer rendering keeps RAM use low.
Interface support is based on each processor’s published display peripherals, not a bench test of this module. Ask us for tested init code.
Alternatives in the catalog
Frequently asked questions
What is the brightness of the PJT177P07H25-200P11N?
200 cd/m² typical with the standard backlight. At 200 cd/m² it is sized for indoor use; the backlight can be upgraded for brighter environments.
What interface does the PJT177P07H25-200P11N use?
SPI. The driver IC is the ILI9163V. Pin definition and timing are in the datasheet, which you can request on this page.
Which processors can drive the PJT177P07H25-200P11N?
ESP32 / ESP32-S3: SPI up to 80 MHz; the 40 KB RGB565 frame fits in internal SRAM. STM32, RP2040, nRF52: Any MCU with an SPI peripheral and DMA; partial-buffer rendering keeps RAM use low.
What is the MOQ and lead time for the PJT177P07H25-200P11N?
Samples start from 1 pc. Production MOQ and lead time depend on quantity and any customization (FPC length, backlight, touch), and are agreed per project with our sales team. Send your annual volume and target date for a quote.
