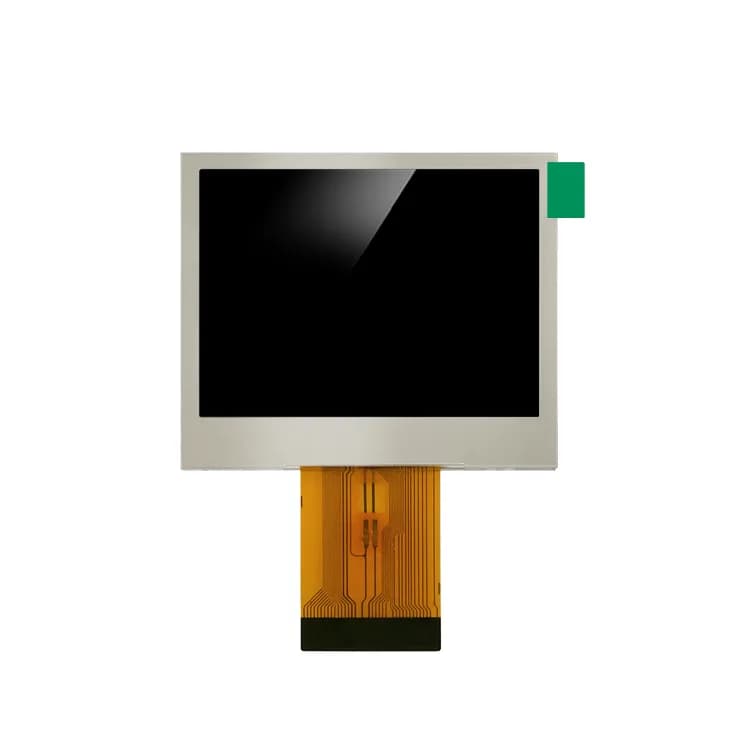

Specifications
| Diagonal size | 2.36" |
|---|---|
| Manufactured by | Shenzhen PengJi Photoelectricity Co., Ltd. (direct factory) |
| Resolution | 480×234 |
| Panel type | TN |
| Interface | RGB (parallel) |
| Pixel pitch (mm) | 0.3*0.153 mm |
| Touch | None |
| Viewing angle | 12 o'clock |
| Colors | 16.7M |
| Outline (mm) | 55.20 (W) * 47.55 (H) * 2.75 (T) mm |
| Active area (mm) | 48.0(W)*35.69(H) mm |
| Backlight | 2 LED Parallel |
| FPC / connector | 40-pin |
Data sources
- Specifications from the product page of the factory that builds the PJ236002T (Shenzhen PengJi Photoelectricity Co., Ltd.).
- Outline, interface, 40-pin FPC and 12 o'clock viewing direction from PengJi's product table; brightness range 300–500 cd/m².
- Confirm final values against the datasheet supplied with samples.
Integration calculations
Figures below are calculated from the PJ236002T’s 480×234 resolution and RGB (parallel), so you can size the host before requesting samples. Refresh rates are theoretical bus limits; real throughput is lower once command overhead and rendering time are included.
| Pixel density | 226 PPI |
|---|---|
| Native orientation | Landscape (480×234) |
| Full frame buffer | 219 KB at RGB565 · 329 KB at RGB888 |
| RGB pixel clock for 60 Hz | ≈ 8.1 MHz (incl. ~20% blanking) |
| RGB bus width | 24 data lines (16.7M colors) + PCLK, HSYNC, VSYNC, DE; can be wired as 16-bit RGB565 with the low bits tied |
Hosts with a native RGB (parallel) peripheral
RGB LCD peripheral (16-bit RGB565) with the 219 KB frame buffer in PSRAM.
- STM32 with LTDC
F429/F7/H7 families drive 16- to 24-bit RGB panels from external SDRAM.
- Raspberry Pi (DPI)
Parallel RGB over the GPIO header via the DPI overlay.
Interface support is based on each processor’s published display peripherals, not a bench test of this module. Ask us for tested init code.
Alternatives in the catalog
Other 2.36" options
- PJ2301H10-23H37P4502.3" 320×240 · MCU (8080 parallel) · TN · 450 nits
- PJ2301T03-23H40P4002.3" 320×240 · RGB (parallel) · TN · 400 nits
- PJ2301H09-23H40P3502.3" 320×240 · RGB (parallel) · TN · 350 nits
- PJ2403I06-22H36P3002.4" 240×320 · interface on request · 300 nits
- PJ2403I02-22H10P3002.4" 240×320 · SPI · TN · 300 nits
- PJ2401I02-22H38P3002.4" 240×320 · MCU (8080 parallel) · TN · 300 nits
Frequently asked questions
What interface does the PJ236002T use?
RGB through a 40-pin FPC. Pin definition and timing are in the datasheet, which you can request on this page.
Which processors can drive the PJ236002T?
ESP32-S3: RGB LCD peripheral (16-bit RGB565) with the 219 KB frame buffer in PSRAM. STM32 with LTDC: F429/F7/H7 families drive 16- to 24-bit RGB panels from external SDRAM. Raspberry Pi (DPI): Parallel RGB over the GPIO header via the DPI overlay.
What is the MOQ and lead time for the PJ236002T?
Samples start from 1 pc. Production MOQ and lead time depend on quantity and any customization (FPC length, backlight, touch), and are agreed per project with our sales team. Send your annual volume and target date for a quote.
