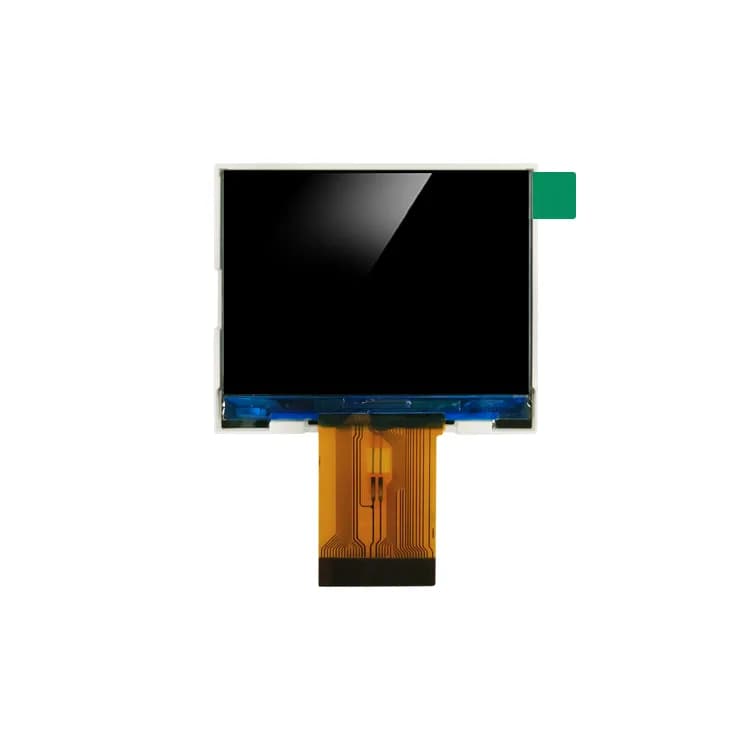

Specifications
| Diagonal size | 2.36" |
|---|---|
| Manufactured by | Shenzhen PengJi Photoelectricity Co., Ltd. (direct factory) |
| Resolution | 480×234 |
| Panel type | TN |
| Interface | SPI / RGB (parallel) |
| Driver IC | OTA5182A-C2 |
| Pixel pitch (mm) | 0.3 * 0.153 mm |
| Touch | None |
| Viewing angle | 6 O’clock viewing direction |
| Colors | 262K |
| Outline (mm) | 55.2 (W) * 47.55 (H) * 2.75(T) mm |
| Active area (mm) | 48.0(W) * 35.69(H) mm |
| Backlight | 2 LED Parallel |
Data sources
- Specifications from the product page of the factory that builds the PJ236001-A (Shenzhen PengJi Photoelectricity Co., Ltd.).
- Confirm final values against the datasheet supplied with samples.
Integration calculations
Figures below are calculated from the PJ236001-A’s 480×234 resolution and SPI / RGB (parallel), so you can size the host before requesting samples. Refresh rates are theoretical bus limits; real throughput is lower once command overhead and rendering time are included.
| Pixel density | 226 PPI |
|---|---|
| Native orientation | Landscape (480×234) |
| Full frame buffer | 219 KB at RGB565 · 329 KB at RGB888 |
| SPI full-frame refresh (RGB565, theoretical) | 22 fps at 40 MHz · 45 fps at 80 MHz |
| RGB pixel clock for 60 Hz | ≈ 8.1 MHz (incl. ~20% blanking) |
| RGB bus width | 18 data lines (262K colors) + PCLK, HSYNC, VSYNC, DE; can be wired as 16-bit RGB565 with the low bits tied |
Hosts with a native SPI / RGB (parallel) peripheral
SPI up to 80 MHz; the 219 KB RGB565 frame fits in internal SRAM.
- STM32, RP2040, nRF52
Any MCU with an SPI peripheral and DMA; partial-buffer rendering keeps RAM use low.
RGB LCD peripheral (16-bit RGB565) with the 219 KB frame buffer in PSRAM.
- STM32 with LTDC
F429/F7/H7 families drive 16- to 24-bit RGB panels from external SDRAM.
- Raspberry Pi (DPI)
Parallel RGB over the GPIO header via the DPI overlay.
Interface support is based on each processor’s published display peripherals, not a bench test of this module. Ask us for tested init code.
Alternatives in the catalog
Other 2.36" options
- PJ2301H10-23H37P4502.3" 320×240 · MCU (8080 parallel) · TN · 450 nits
- PJ2301T03-23H40P4002.3" 320×240 · RGB (parallel) · TN · 400 nits
- PJ2301H09-23H40P3502.3" 320×240 · RGB (parallel) · TN · 350 nits
- PJ2403I06-22H36P3002.4" 240×320 · interface on request · 300 nits
- PJ2403I02-22H10P3002.4" 240×320 · SPI · TN · 300 nits
- PJ2401I02-22H38P3002.4" 240×320 · MCU (8080 parallel) · TN · 300 nits
Frequently asked questions
What interface does the PJ236001-A use?
SPI / RGB. The driver IC is the OTA5182A-C2. Pin definition and timing are in the datasheet, which you can request on this page.
Which processors can drive the PJ236001-A?
ESP32 / ESP32-S3: SPI up to 80 MHz; the 219 KB RGB565 frame fits in internal SRAM. STM32, RP2040, nRF52: Any MCU with an SPI peripheral and DMA; partial-buffer rendering keeps RAM use low. ESP32-S3: RGB LCD peripheral (16-bit RGB565) with the 219 KB frame buffer in PSRAM. STM32 with LTDC: F429/F7/H7 families drive 16- to 24-bit RGB panels from external SDRAM. Raspberry Pi (DPI): Parallel RGB over the GPIO header via the DPI overlay.
What is the MOQ and lead time for the PJ236001-A?
Samples start from 1 pc. Production MOQ and lead time depend on quantity and any customization (FPC length, backlight, touch), and are agreed per project with our sales team. Send your annual volume and target date for a quote.
