Specifications
| Diagonal size | 4.3" |
|---|---|
| Manufactured by | Shenzhen PengJi Photoelectricity Co., Ltd. (direct factory) |
| Resolution | 800×480 |
| Panel type | IPS |
| Interface | SPI / RGB (parallel) |
| Touch | Resistive (RTP) |
| Viewing angle | Full viewing angle (all directions) |
| Operating temp. | -20 to +70 °C |
| Outline (mm) | 109.2(W)*67.6(H)*3.2(T) mm |
| Active area (mm) | 93(W)*55.8(H) mm |
| Backlight | 7 LEDs in series |
| FPC / connector | 60-pin |
Data sources
- Specifications from the product page of the factory that builds the PJ4302G01-32H60P (Shenzhen PengJi Photoelectricity Co., Ltd.).

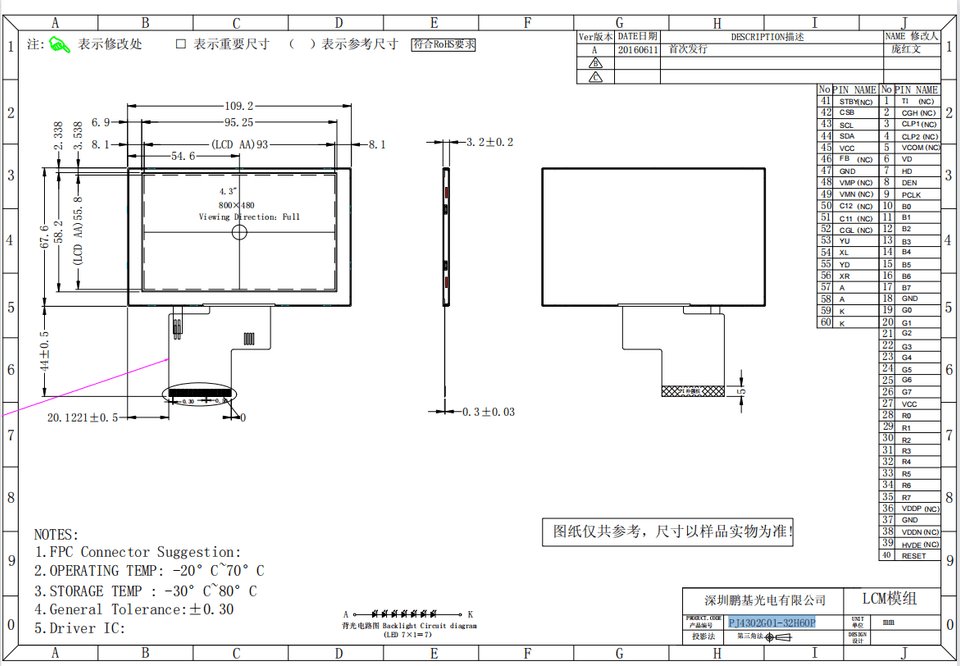

- Specs transcribed from the spec-chart image on the source page; verify against the datasheet. 60-pin FPC includes 4-wire resistive touch lines (XR/YD/XL/YU); drawing marked RoHS compliant.
- Confirm final values against the datasheet supplied with samples.
Integration calculations
Figures below are calculated from the PJ4302G01-32H60P’s 800×480 resolution and SPI / RGB (parallel), so you can size the host before requesting samples. Refresh rates are theoretical bus limits; real throughput is lower once command overhead and rendering time are included.
| Pixel density | 217 PPI |
|---|---|
| Native orientation | Landscape (800×480) |
| Full frame buffer | 750 KB at RGB565 · 1.10 MB at RGB888 |
| SPI full-frame refresh (RGB565, theoretical) | 6.5 fps at 40 MHz · 13 fps at 80 MHz |
| RGB pixel clock for 60 Hz | ≈ 27.6 MHz (incl. ~20% blanking) |
| RGB bus width | 24 data lines (16.7M colors) + PCLK, HSYNC, VSYNC, DE; can be wired as 16-bit RGB565 with the low bits tied |
Hosts with a native SPI / RGB (parallel) peripheral
SPI up to 80 MHz; the 750 KB RGB565 frame needs PSRAM or LVGL partial buffers.
- STM32, RP2040, nRF52
Any MCU with an SPI peripheral and DMA; partial-buffer rendering keeps RAM use low.
RGB LCD peripheral (16-bit RGB565) with the 750 KB frame buffer in PSRAM.
- STM32 with LTDC
F429/F7/H7 families drive 16- to 24-bit RGB panels from external SDRAM.
- Raspberry Pi (DPI)
Parallel RGB over the GPIO header via the DPI overlay.
Interface support is based on each processor’s published display peripherals, not a bench test of this module. Ask us for tested init code.
